Java Strings Internals

Java Strings are one of the most used data structures in the Java ecosystem. Understanding their internal implementation is crucial for writing efficient applications, especially in high-performance scenarios.

A key characteristic of the String class is its immutability — once created, a String object cannot be modified. This immutability provides several benefits:

• Thread Safety: Immutable objects are inherently thread-safe, making Strings ideal for concurrent applications.
• Security: Since Strings cannot be modified, they are safe to use for sensitive data like passwords or authentication tokens.
• Caching: The immutable nature allows Java to cache and reuse String objects through the String pool.
• Hash code: The hash code can be cached since the String content never changes.

While Strings seem simple on the surface, their internal implementation has evolved significantly across different JDK versions to improve memory usage and performance.

1. String Storage and Encoding

Before JDK 9, all String characters were stored using UTF-16 encoding, meaning each character consumed 2 bytes of memory regardless of the actual character being stored. This was inefficient for strings containing only ASCII characters, which was the common case for most applications.

1.1. Compact Strings (JDK 9+)

JEP 254 introduced Compact Strings, a memory optimization that changed how strings are stored internally at runtime.
This means that even if your code was compiled with Java 8, running it on JVM 9+ will automatically benefit from this optimization, as it is a JVM feature, not a compile-time one.

// This code compiled with Java 8 will still use Compact Strings when run on JVM 9+
String ascii = "Hello";     // Uses LATIN1 encoding on JVM 9+
String special = "Hello👋"; // Uses UTF16 encoding on both JVM 8 and 9+

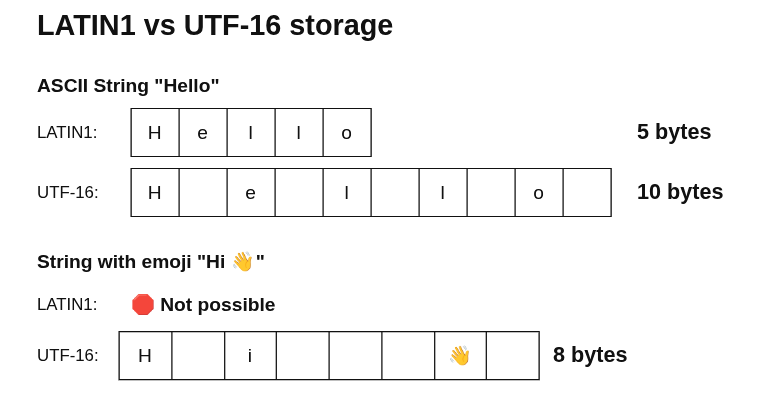

The JVM automatically chooses between two encodings:

• LATIN1 (ISO-8859-1) for strings that only contain characters that can be represented in one byte.
• UTF16 for strings that require more than one byte per character.

This optimization is transparent to application code and can reduce the memory footprint of your application by up to 50% when most strings contain only ASCII characters.

You can disable this optimization using the JVM flag:

-XX:-CompactStrings

However, disabling Compact Strings is not recommended unless you have a very specific use case, as it will increase memory usage significantly.

1.2. UTF-8 by Default (JDK 18+)

JEP 400 changed the default charset to UTF-8 in Java 18. Before this change, the default charset depended on the operating system and locale settings, which could lead to inconsistent behavior across different environments.

System.out.println(Charset.defaultCharset());

This affects APIs like Charset.defaultCharset(), file I/O, and system properties such as file.encoding.

Note: Internal String representation (LATIN1/UTF16) is different from the default charset used for I/O operations. Compact Strings optimization works at the JVM level, while the default charset affects how Java interacts with the external world.

1.2.1. Potential Breaking Changes

If your application relies on the platform’s default encoding, you might need to:

// Explicit charset specification for backward compatibility
String content = new String(bytes, Charset.forName("windows-1252"));
Files.write(path, content.getBytes(StandardCharsets.ISO_8859_1));

2. String Pool and Interning

In Java, String interning is a method of storing only one copy of each distinct String value, which must be immutable. The String pool is a special storage area in the Java heap where Java stores these interned Strings. When you create a String literal, Java checks the String pool first to see if an identical String already exists. If it does, Java returns a reference to the pooled instance. If it does not, Java adds the new String to the pool and then returns the reference.

2.1. How Interning Works

Interning is done using the String.intern() method. When you intern a String, Java checks if the String is already in the pool. If it is, intern() returns the reference from the pool. If it is not, intern() adds the String to the pool and then returns the reference.

Here is an example:

String a = "Hello";
String b = "Hello";
String c = new String("Hello").intern();

System.out.println(a == b); // true, both refer to the same instance in the pool
System.out.println(a == c); // true, c is interned and refers to the same instance as a

2.2. String Interning in Practice

String interning stores a single copy of each distinct string in a dedicated pool to avoid duplicates. While it may seem beneficial, it comes with notable trade-offs:

In modern Java applications, using String.intern() is rarely necessary.

The JVM’s advanced garbage collectors and optional String deduplication mechanisms (in G1 and ZGC) already minimize duplicate character arrays efficiently.

In general, explicit interning should be avoided unless you have a very specific, well-profiled case demonstrating measurable benefits.

2.3. String Deduplication

String deduplication is a JVM feature that automatically identifies and removes duplicate String objects from memory. Unlike String interning, which you control explicitly through code, deduplication happens automatically during garbage collection when enabled.

To enable String deduplication:

-XX:+UseStringDeduplication

Example of deduplication in action:

String a = new String("hello").intern(); // Goes to String pool
String b = new String("hello");          // New object in heap
String c = new String("hello");          // New object in heap

// After some GC cycles with StringDeduplication:
// b and c will share the same underlying byte[] array
// This happens automatically without explicit interning

2.3.1. Configuration Parameters

• -XX:StringDeduplicationAgeThreshold: Age threshold before String objects are considered for deduplication (default: 3).
• -XX:StringTableSize: Size of the hash table for String deduplication (default: 60013).

2.4. Performance Considerations

• Monitor deduplication with -XX:+PrintStringDeduplicationStatistics.
• Combine with Compact Strings for optimal memory usage.
• Unlike interning, deduplication happens automatically and is generally safer for dynamic strings,

3. String Concatenation

3.1. Compile-time Optimizations

The Java compiler performs several optimizations when dealing with String concatenation. When concatenating string literals or final variables, the compiler will combine them at compile time:

// Compile-time constants
final String GREETING = "Hello";
final String WORLD = "World";
String result = GREETING + " " + WORLD;

// Decompiled bytecode will show:
String result = "Hello World";

However, when working with non-final variables, the compiler behavior has evolved:

String a = "Hello";
String b = "World";
String result = a + " " + b;

// Before JDK 9 - Compiled to StringBuilder
// Decompiled bytecode equivalent:
String result = new StringBuilder()
    .append(a)
    .append(" ")
    .append(b)
    .toString();

// After JDK 9 - Uses invokedynamic
// More efficient implementation determined at runtime

3.2. The concat() Method

While the + operator is the most common way to concatenate strings, Java also provides the concat() method. However, there are important differences to consider:

String a = "Hello";
String b = "World";

// Using + operator
String result1 = a + " " + b;

// Using concat()
String result2 = a.concat(" ").concat(b);

Key considerations:

• concat() creates a new String object for each call.
• Unlike +, concat() will not be optimized by the compiler into StringBuilder operations.
• concat() throws NullPointerException if the argument is null, while + converts null to “null”.

String str = "Hello";
String nullStr = null;

// Works fine, prints "Hello null"
System.out.println(str + nullStr);

// Throws NullPointerException
System.out.println(str.concat(nullStr));

In terms of performance:

• For simple concatenations, + is usually the best choice.
• For multiple concatenations in loops, use StringBuilder.
• Avoid concat() in performance-critical code or loops.

3.3. String Concatenation in Loops

One of the most common performance pitfalls is concatenating strings inside loops:

// Bad practice
String result = "";
for (int i = 0; i < 1000; i++) {
    result += "number" + i; // Creates many temporary objects
}

// Good practice
StringBuilder builder = new StringBuilder();
for (int i = 0; i < 1000; i++) {
    builder.append("number").append(i);
}
String result = builder.toString();

Note: Even though the compiler uses StringBuilder internally for the + operator, it creates a new StringBuilder for each concatenation operation in the loop.

3.4. Performance Benchmark

Here is a JMH benchmark comparing different approaches and showing the performance difference:

@BenchmarkMode(Mode.AverageTime)
@OutputTimeUnit(TimeUnit.MICROSECONDS)
@State(Scope.Thread)
@Fork(1)
@Warmup(iterations = 2)
@Measurement(iterations = 3)
public class StringConcatenationBenchmark {

    @Param({"100", "1000", "10000"})
    private int length;

    @Benchmark
    public String concatenateWithPlus() {
        String result = "";
        for (int i = 0; i < length; i++) {
            result += "number" + i;
        }
        return result;
    }

    @Benchmark
    public String concatenateWithBuilder() {
        StringBuilder builder = new StringBuilder();
        for (int i = 0; i < length; i++) {
            builder.append("number").append(i);
        }
        return builder.toString();
    }

    @Benchmark
    public String concatenateWithPreallocatedBuilder() {
        StringBuilder builder = new StringBuilder(length * 10);
        for (int i = 0; i < length; i++) {
            builder.append("number").append(i);
        }
        return builder.toString();
    }
}

This was the benchmark setup:

• Dell XPS 9370 with an i7-8550U.
• 16 GB of RAM.
• Arch Linux with kernel 6.17.1-arch1-1.
• OpenJDK Runtime Environment Zulu25.28+85-CA (build 25+36-LTS).

The benchmark results demonstrate several key points:

1. String concatenation with + operator:

   • Shows exponential performance degradation.
   • At 10,000 iterations, takes ~37ms (37,008.220 μs).
   • Creates multiple intermediate String objects.

2. StringBuilder without preallocation:

   • Linear performance growth.
   • At 10,000 iterations, takes ~109μs.
   • Still requires buffer resizing operations.

3. Preallocated StringBuilder:

   • Best performance across all sizes.
   • At 10,000 iterations, only ~91μs.
   • Avoids buffer resizing completely.

The importance of preallocating StringBuilder capacity:

• Eliminates the need for buffer resizing.
• Reduces memory allocation overhead.
• Prevents copying of existing content during resize.
• Particularly important in performance-critical loops.

For example, StringBuilder’s default capacity is 16 characters. Without preallocation, it will need to resize multiple times:

// Initial capacity: 16
// First resize: 34
// Second resize: 70
// Third resize: 142
// ...and so on

// Better approach:
int finalSize = items.size() * 20; // Estimate final size
StringBuilder builder = new StringBuilder(finalSize);

As shown in the benchmark, proper preallocation can improve performance by up to 16% in large concatenation operations.

3.5. Understanding invokedynamic and Bytecode

Since JDK 9, String concatenation uses invokedynamic to optimize the operation at runtime. This is a simple Java sample code and its result bytecode:

String name = "John";
int age = 30;
String message = "Hello " + name + ", you are " + age + " years old";

Before JDK 9, the bytecode would show:

// Decompiled from JDK 8 bytecode
new java/lang/StringBuilder
dup
ldc "Hello "
invokespecial java/lang/StringBuilder.<init>(Ljava/lang/String;)V
aload_1
invokevirtual java/lang/StringBuilder.append(Ljava/lang/String;)Ljava/lang/StringBuilder;
ldc ", you are "
invokevirtual java/lang/StringBuilder.append(Ljava/lang/String;)Ljava/lang/StringBuilder;
iload_2
invokevirtual java/lang/StringBuilder.append(I)Ljava/lang/StringBuilder;
ldc " years old"
invokevirtual java/lang/StringBuilder.append(Ljava/lang/String;)Ljava/lang/StringBuilder;
invokevirtual java/lang/StringBuilder.toString()Ljava/lang/String;

After JDK 9, it becomes:

// Decompiled from JDK 9+ bytecode
invokedynamic makeConcatWithConstants(Ljava/lang/String;I)Ljava/lang/String;
  // Bootstrap method using StringConcatFactory

This change allows the JVM to:

• Choose the best concatenation strategy at runtime.
• Avoid creating unnecessary intermediate objects.
• Optimize based on the actual string content and size.

3.6. StringBuffer vs StringBuilder

While StringBuilder is the preferred choice for string concatenation, StringBuffer still has its place:

// Thread-safe but slower
StringBuffer buffer = new StringBuffer();
buffer.append("Hello ");
buffer.append("World");

// Not thread-safe but faster
StringBuilder builder = new StringBuilder();
builder.append("Hello ");
builder.append("World");

Key differences:

• StringBuffer: All methods are synchronized.
• StringBuilder: No synchronization, better performance.
• Memory usage is identical.
• Both are mutable.

When to use each:

// Use StringBuffer when sharing between threads
public class SharedMessage {
    private final StringBuffer message = new StringBuffer();

    public synchronized void addToMessage(String text) {
        message.append(text);
    }
}

// Use StringBuilder for single-thread operations
public class MessageBuilder {
    private final StringBuilder message = new StringBuilder();

    public void addToMessage(String text) {
        message.append(text);
    }
}

Note: In modern Java applications, it is rare to need StringBuffer. If you need thread-safe string manipulation, consider using other synchronization mechanisms or concurrent data structures.
